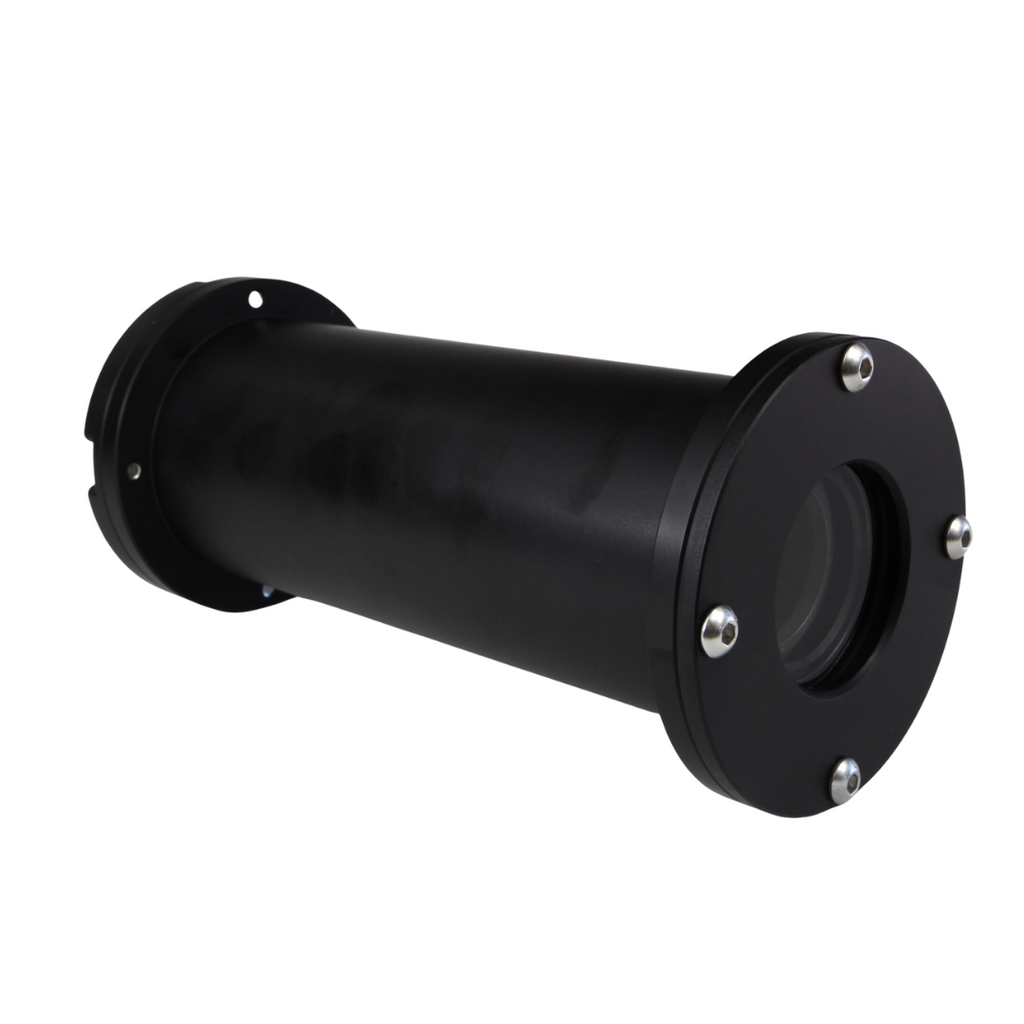

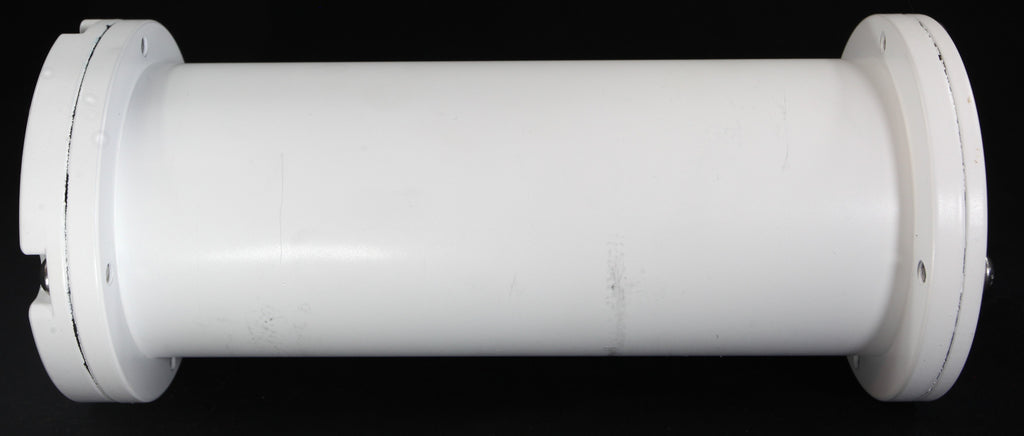

The E-Series offers a variety of sizes of flame proof, harsh environment imaging. Whether its research, inspection, or monitoring this rugged enclosure can handle it. This product is ideal for movie production and stunt recording; highly explosive environments such as mining and space exploration; and fire rescue, training and monitoring activities.
- Built for Marshall CV503 Camera
- Fits some center lens action cameras, POV cameras, & security cameras
PLEASE SEE "INSIDE DIAMETER" DEMINSIONS BELOW TO ENSURE CAMERA WILL FIT

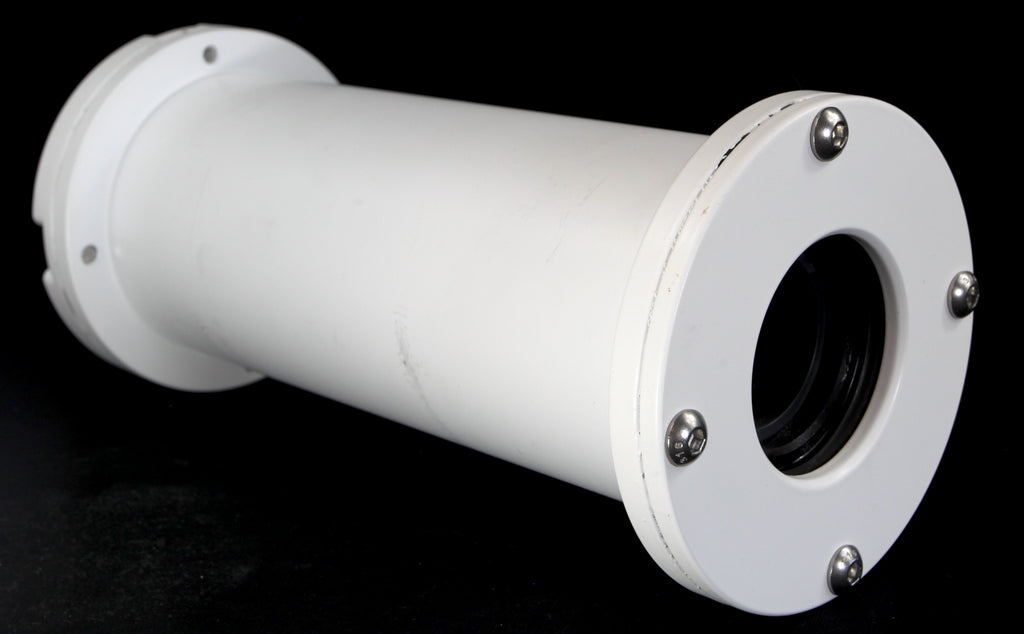

- Anodized aluminum/powder coated housing

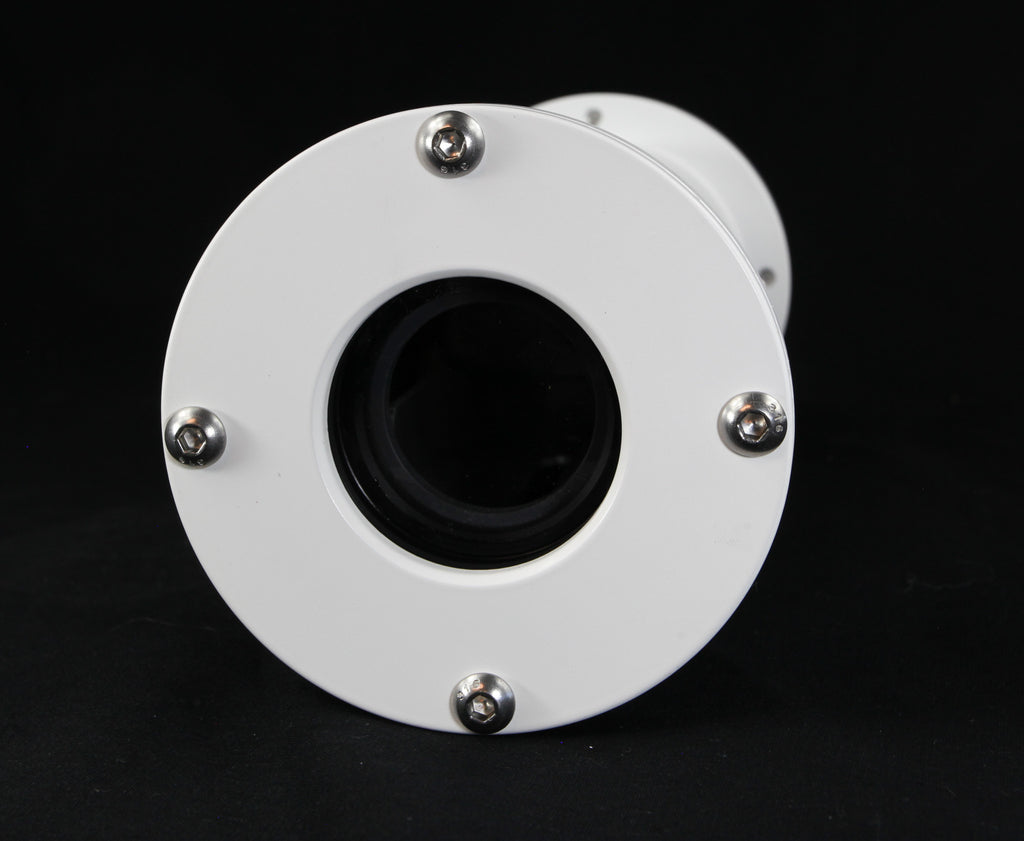

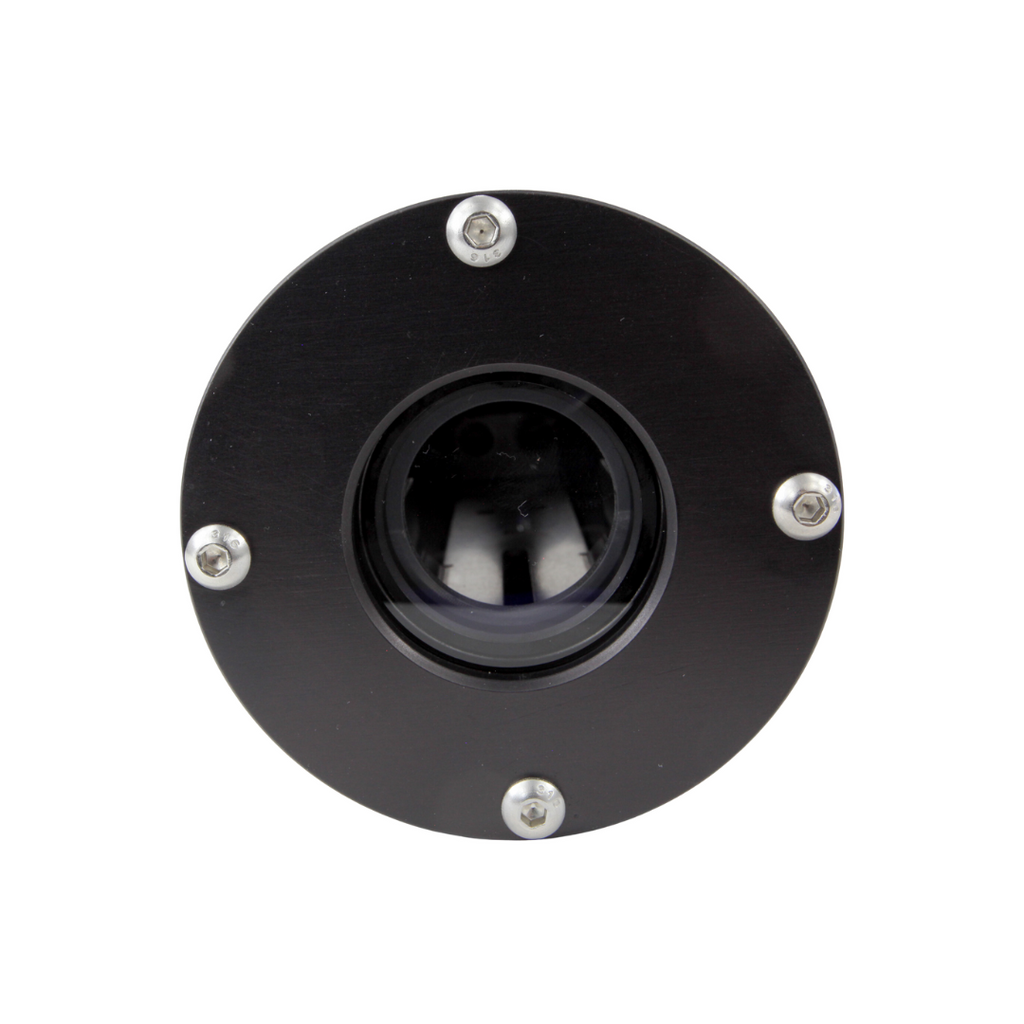

- Ultra-high temperature quartz glass window with AR coating and water repellent coating
- Open design to fit a variety of camera and lens options

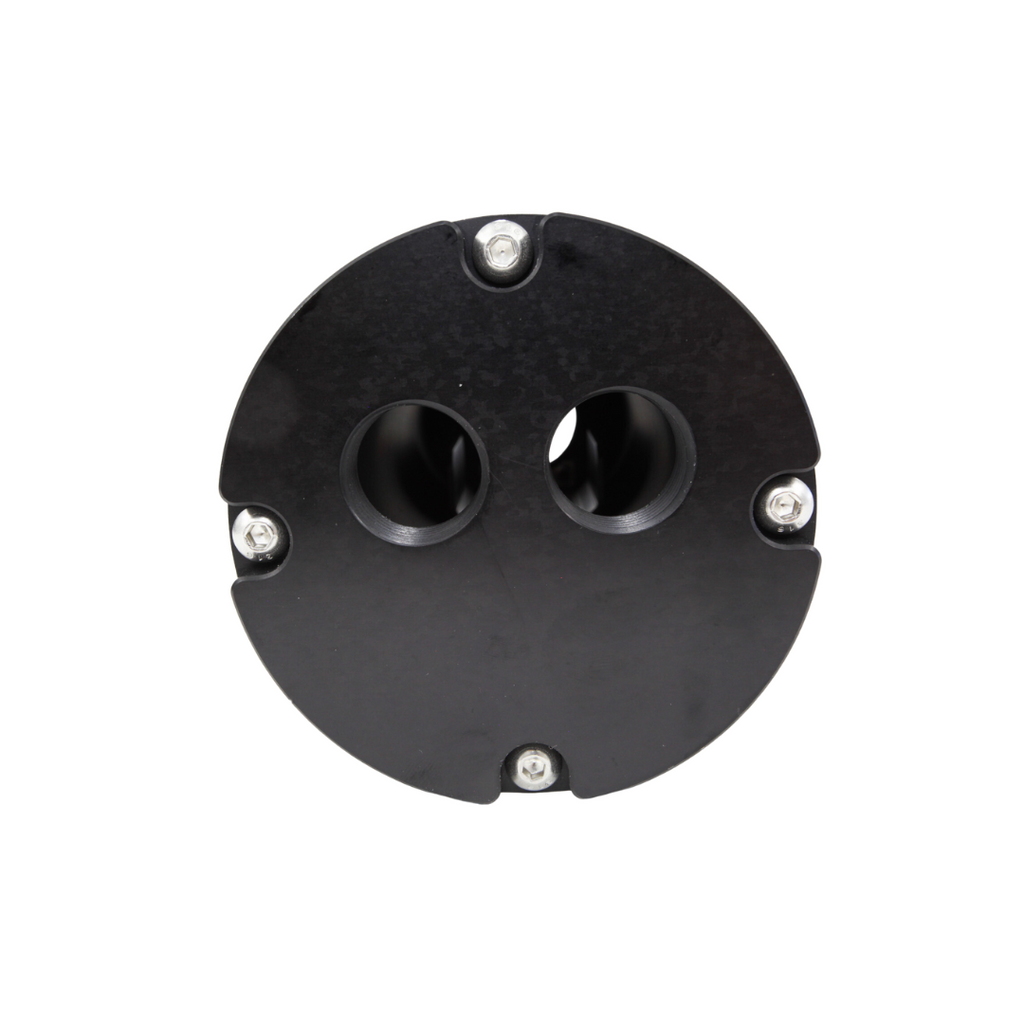

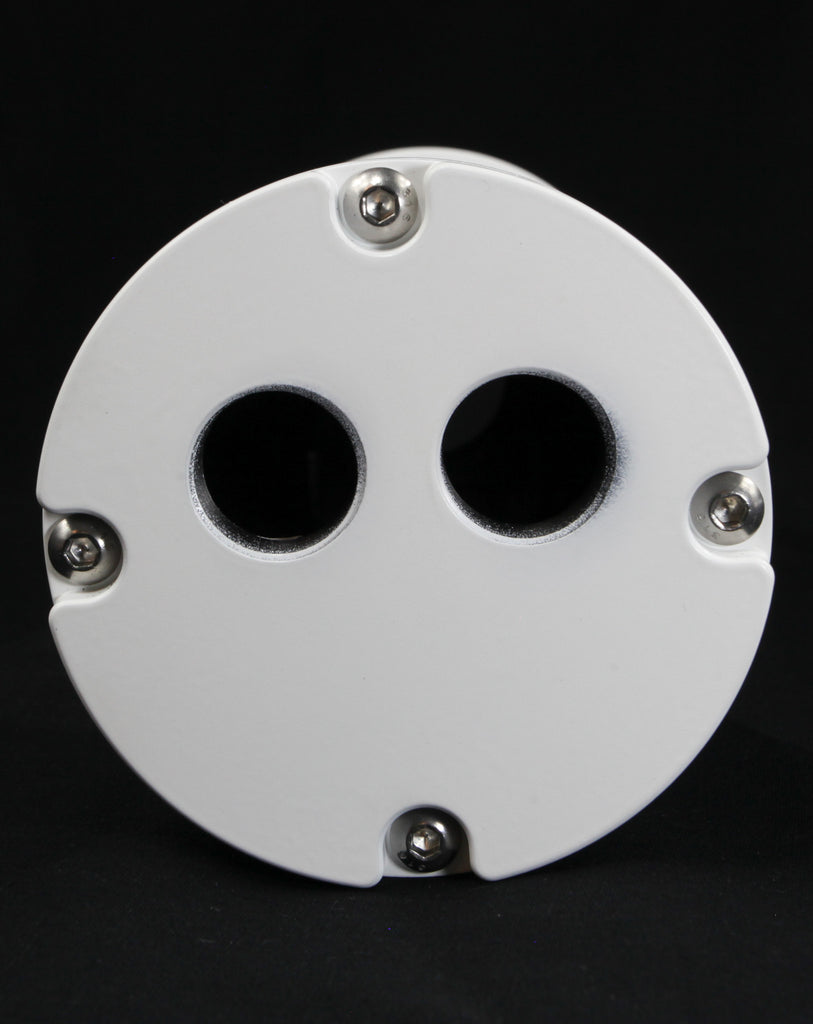

- Various options for connectors
- 316 stainless steel hardware for maximum corrosion resistance
- Crystal clear heat resistant ports
- Bolted door closure for secure, tamper resistant seal
- Adjustable camera tray
- Face Seal 1/8 inch o-ring design

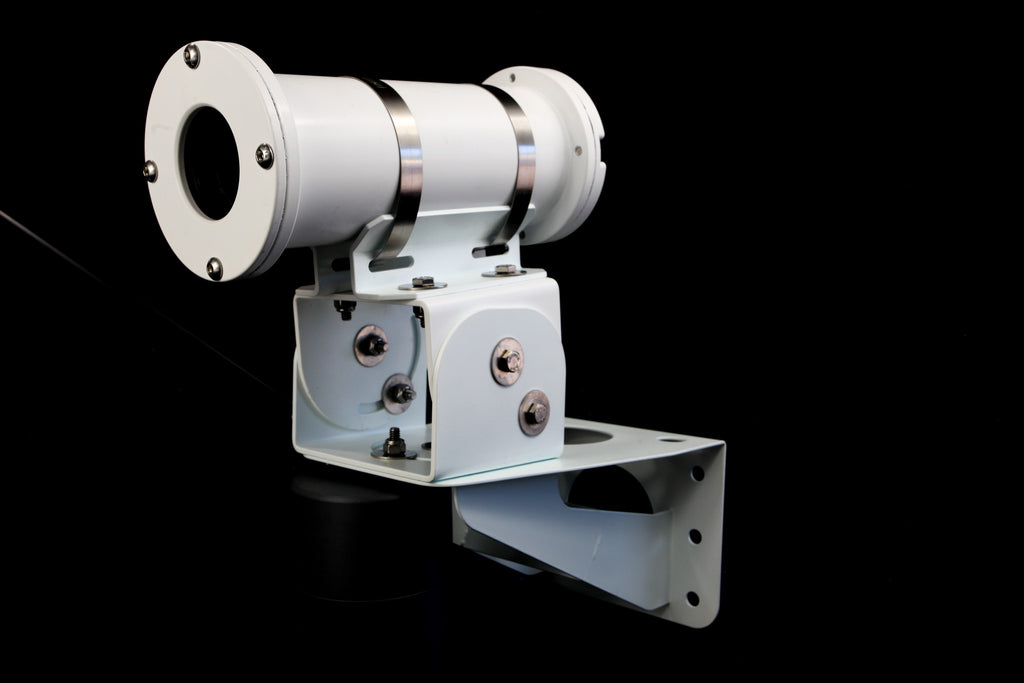

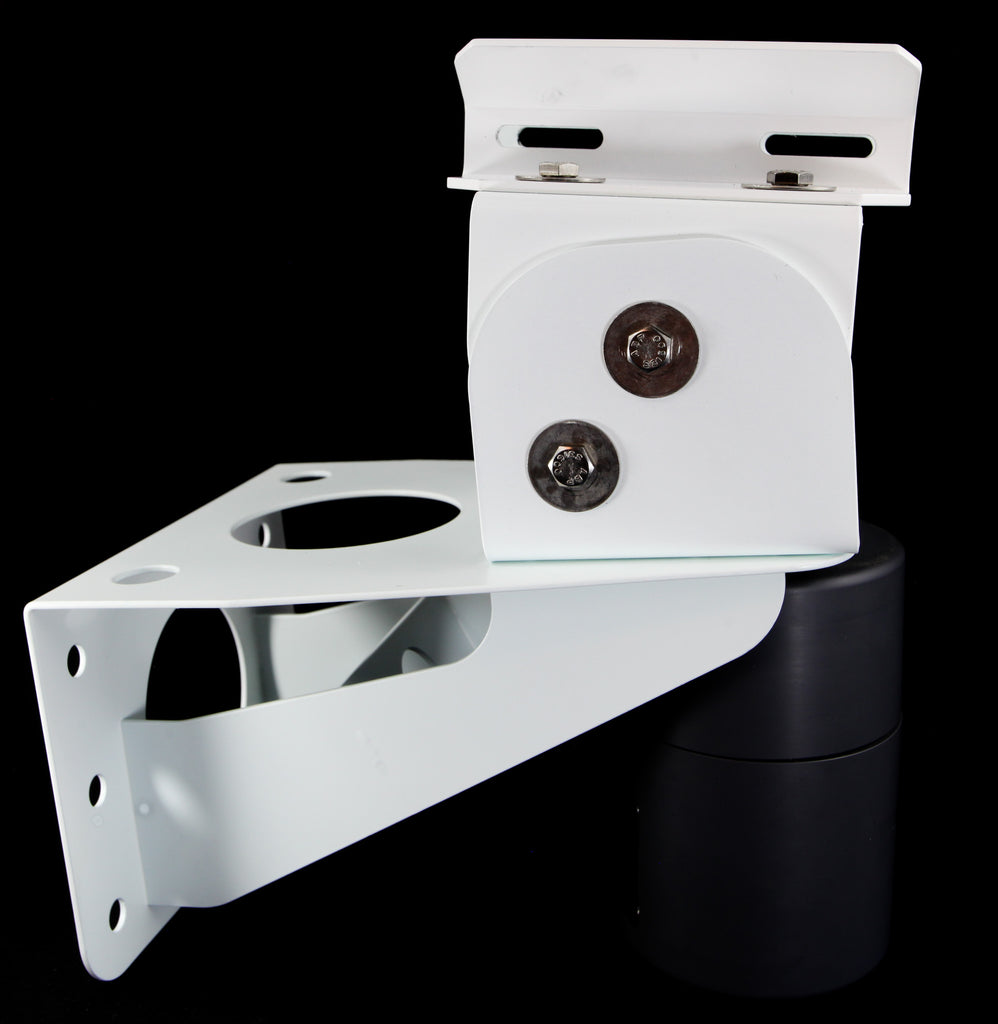

- Universal mounting system with included wall mount and pivot bracket

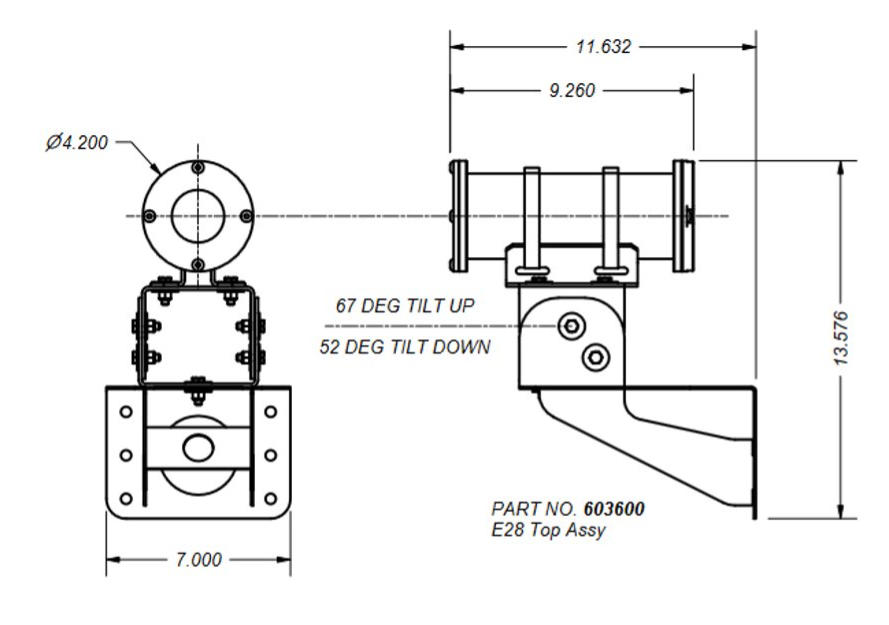

Please See Diagram For More Information
- Total Length: 11.632"
- Cylinder Inside Diameter: 2.8"
- Cylinder Outside Diameter: 4.2"
- Total Height w/Bracket: 13.576 "
- Bracket Width: 7"
Pricing is for housing ONLY and does not include lens, camera, or connectors.
